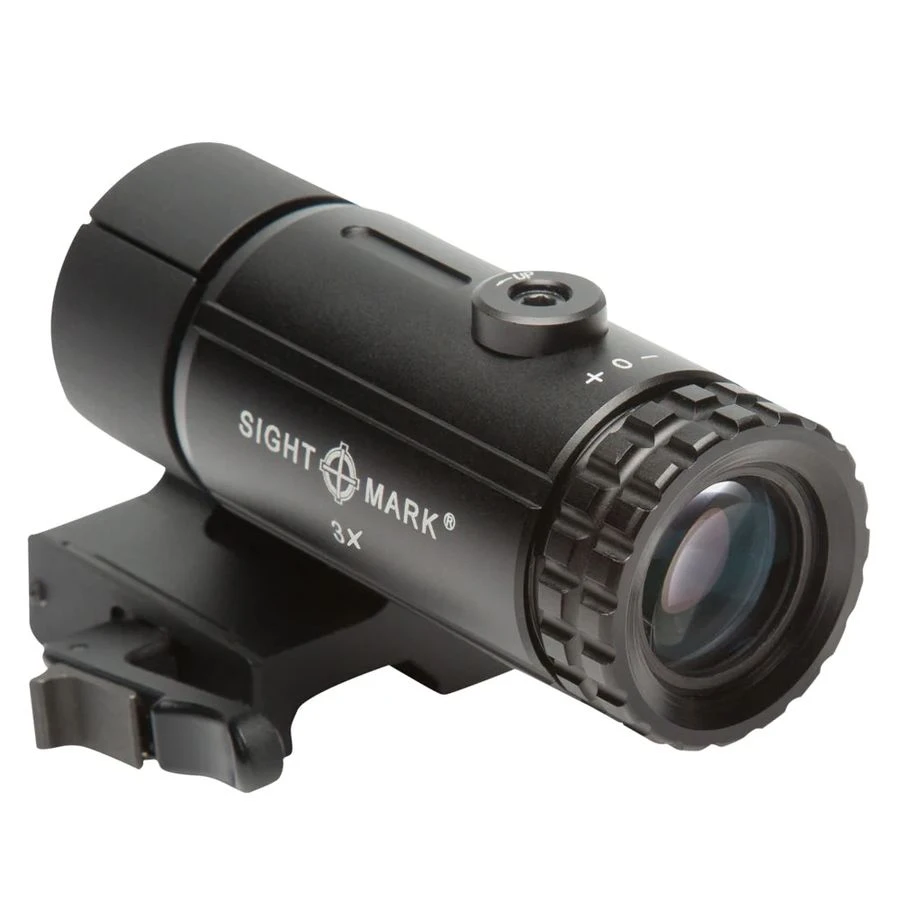

Sightmark T-3 Magnifier with LQD Flip to Side Mount

Designed to mount directly behind a reflex sight or red dot, the versatile T-3 Magnifier allows a quick and easy way to magnify your sight picture by 3x and provides an absolute co-witness. A straight tube magnifier a full .8” shorter than the model it replaces, the T-3 features a streamlined, low drag design, preventing the magnifier from snagging on equipment in important situations. Ideal for engagements up to 100 yards, if a close-range shooting scenario calls for no magnification, simply use the T-3’s flip-to-side mount to rapidly transition between the optic systems. This durable magnifier is constructed of aluminium and provides improved brightness and resolution from fully multi-coated optics. External windage and elevation adjustments align the reticle to the centre of the T-3’s point of view. EOTech® and Aimpoint® compatible, the locking quick detach mount found on the T-3 lets the magnifier be quickly removed. Sightmark T-3 Magnifiers include flip-to-side LQD mount, adjustment tools and manual.

Features

• Locking, quick detach mount for quick and easy removal
• Flip-to-side mount provides rapid transition between optical systems
• Fully multi-coated, scratch resistant
• External windage/elevation adjustment for reticle alignment
• Increases magnification of accompanying sights for greater engagement range
• EOTech® and Aimpoint® compatible
• Aluminium construction

Included in Package

• Flip to side LQD mount
• Adjustment tools
• Manual

Magnification	3x
Diameter, Objective Lens	23 mm
Diameter, Eyepiece	1.26/32 in/mm
Diameter, Exit Pupil	7.6 mm
Eye relief (in/mm)	2.25/57 in/mm
Field of view, m@100m	14.43
Field of view, ft@100yd	43.3
Diopter Adjustment	+3 to -3
Diameter, Tube	30 mm
Maximum Recoil	.308 Calibre
Shockproof	Yes
Fog Proof	No
IP Rating (waterproof)	IP55 – water resistant
Finish/Colour	Matte black
Body Material	Aluminium
Lens Coating	Full Multi-coated
Mount Type	Picatinny
Operating temperature, F/C	-22 to 160 / -30 to 71 F/C
Length (in/mm)	4 / 103 in/mm
Width (in/mm)	2.6 / 66.2 in/mm
Height (in/mm)	1.67 / 42.5 in/mm
Weight, oz	10.6 oz.
