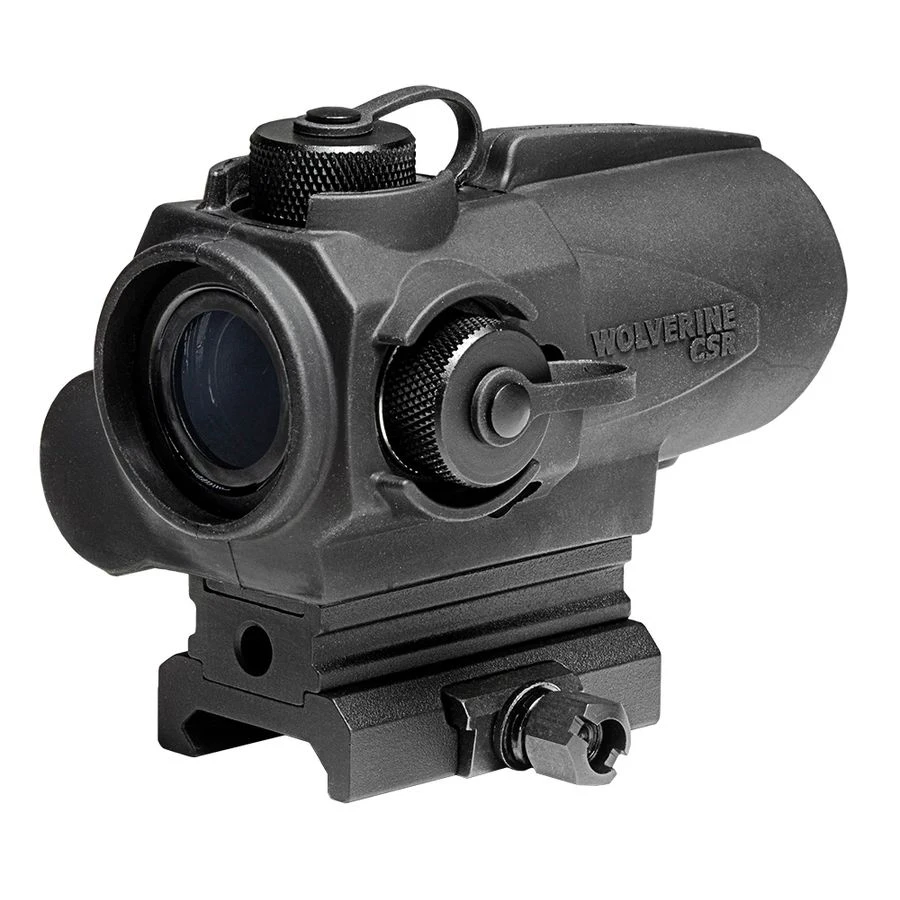

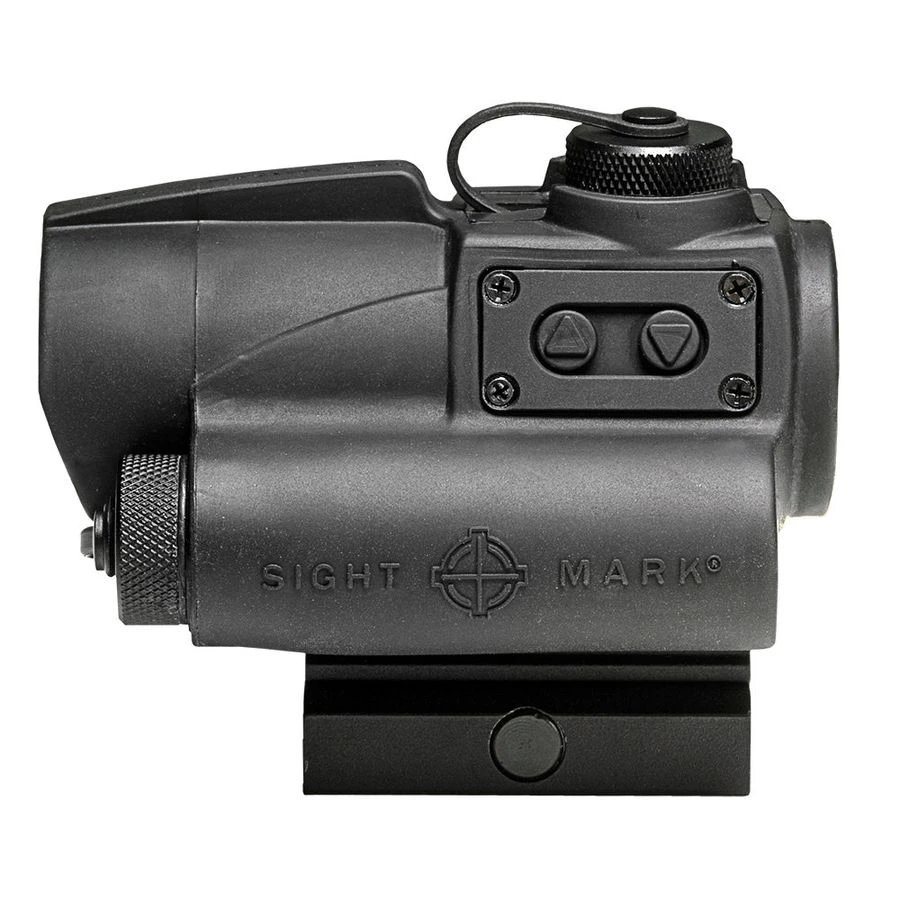

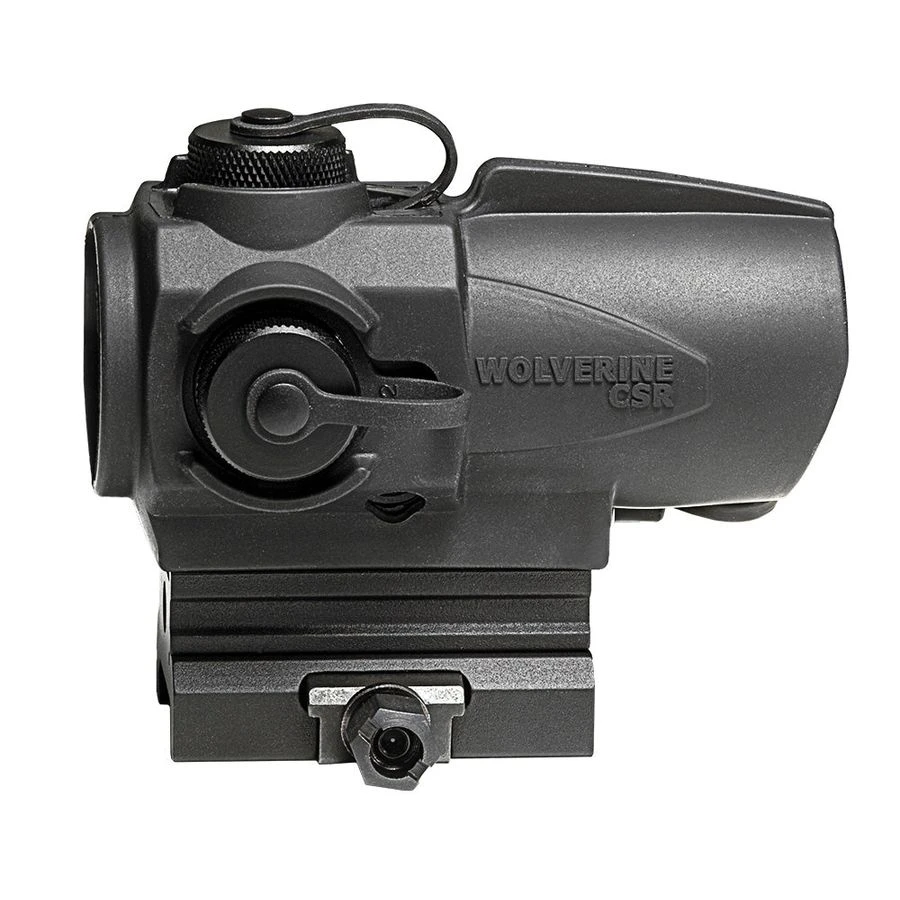

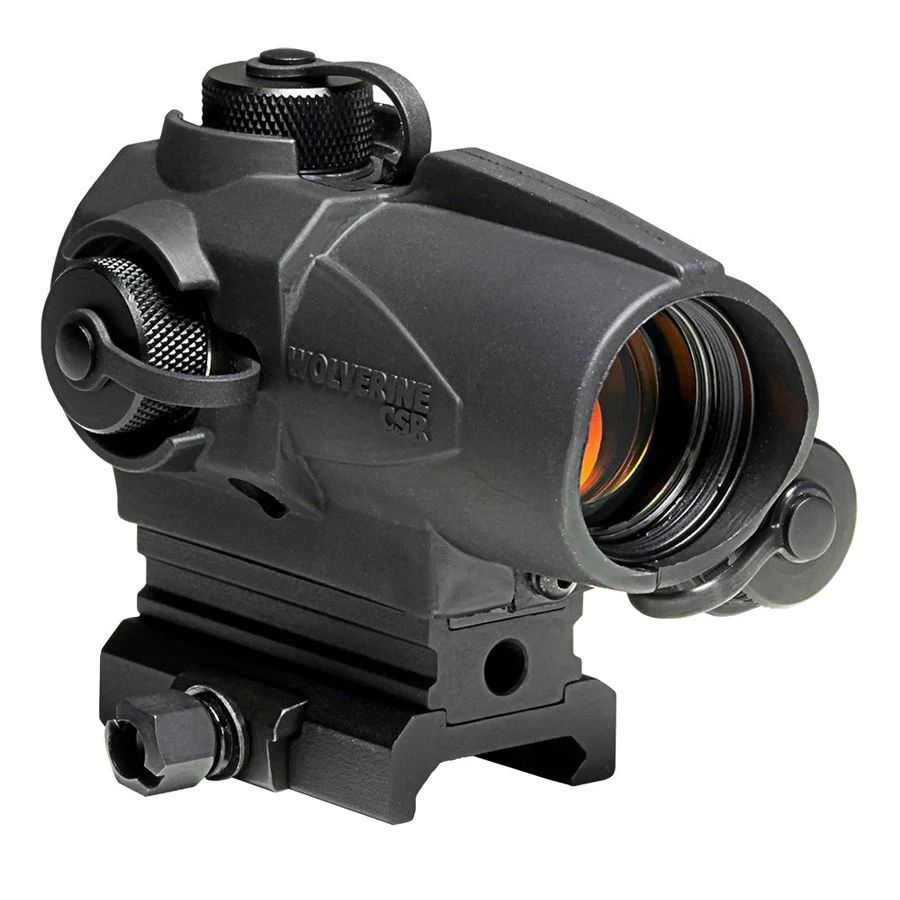

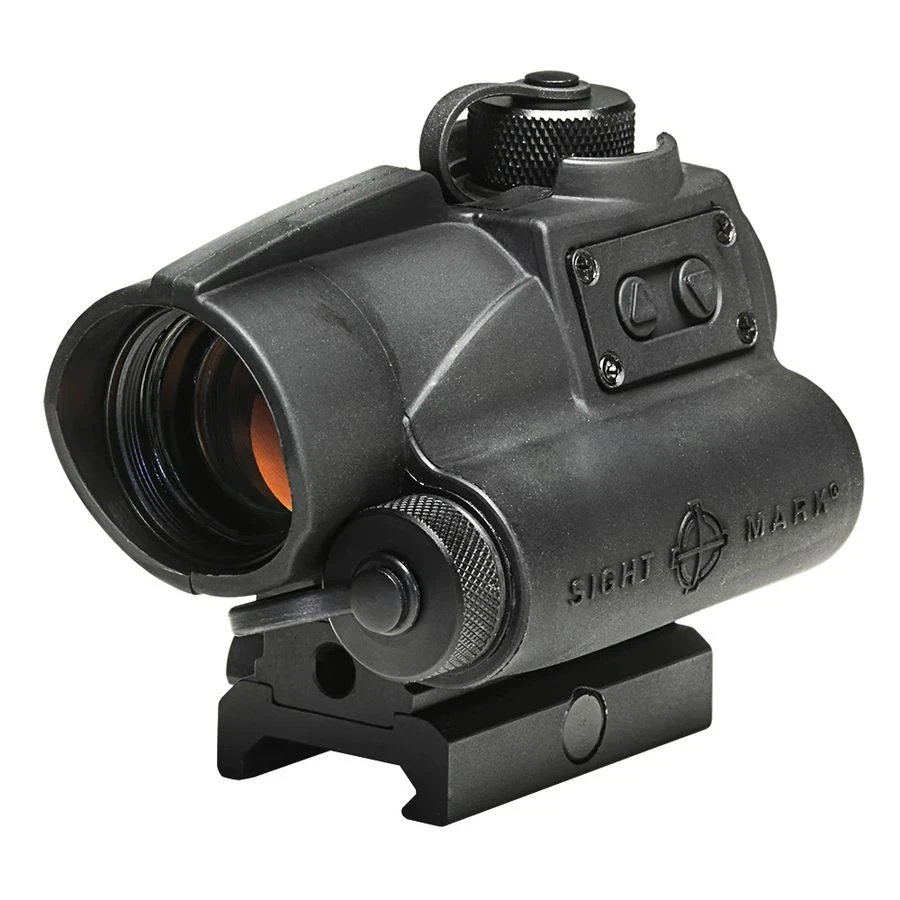

Sightmark Wolverine CSR Red Dot Sight

The Sightmark Wolverine CSR Red Dot Sight is a close-range optic designed specifically for shotguns and short barrelled rifles. The CSR sports a 4 MOA red dot reticle with a 23mm objective lens and adjustable digital switch brightness controls. Compact and lightweight, the CSR weighs just 10.3 ounces and boasts extremely low power consumption, with 1,000,000 million hours battery life on low power and 50,000 hours on setting 6 from just a single AA battery. The CSR also offers variable brightness and night vision modes, which enables the ability to co-witness with a night vision sight. The responsive Wolverine sights are housed in a single piece of 6061-T6 aluminium that is rubber armoured and protected by a scratch resistant, anti-reflective lens coating. Fog proof and nitrogen purged, the CSRs are designed to provide shooters the ability to take aim in a variety of conditions and temperatures ranging from -22 to 122 F. The Wolverine was built to adapt and is ready for anything. All Wolverine models sport an IP67 waterproof rating and are water submersible to three feet. Wolverine red dot sights have an adjustable mount height and are compatible with Picatinny mounts./p>

Features

• Very low power consumption

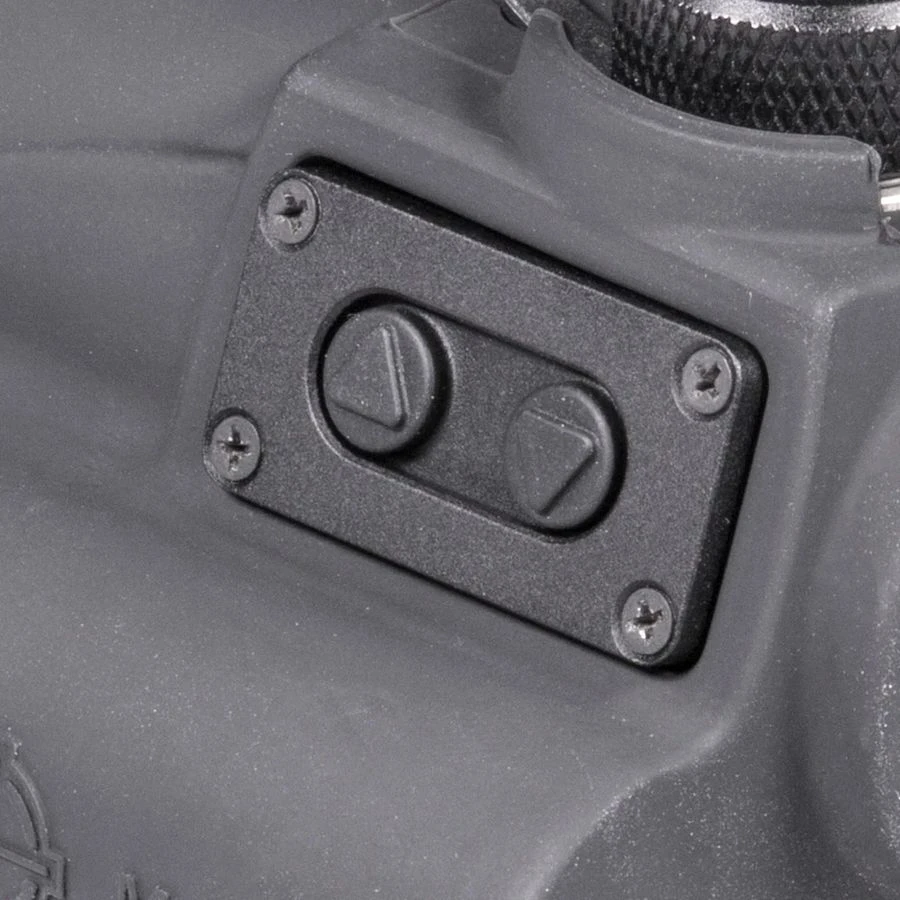

• Digital switch brightness controls
• Scratch resistant, anti-reflective lens coating
• Compact and lightweight design
• Protected adjustment caps
• Rubber armoured, single piece 6061-T6
• Adjustable mount height
• IP67 waterproof rating – submersible to
• Fogproof, nitrogen purged
• Night vision compatible
• Unlimited eye relief
• Shockproof design
• Wide range of operating temperature, -22 to 122 F
• Powered by a single AA battery

Included in Package

• Rubber lens cover
• Picatinny mount
• Riser for absolute co witness

Batteries Used

• Type: AA
• Quantity: 1

Reticle, Type	4 MOA Dot
Reticle, Colour	Red
Reticle, Illuminated	yes
Setting, Brightness	off, NV1, NV2, 3-10
Magnification	1 x
Dimension, Window	23 mm
Material, Window	glass
Eye Relief	unlimited mm
Windage Range of Adjustment	120 MOA
Elevation Range of Adjustment	120 MOA
MOA Adjustment	1 MOA
Finish/Colour	Matte black
Body Material	Aluminium 6061-T6 / rubber
Maximum Recoil	.338 Win
IP Standard	IP67 (submersible to 1m / 3ft)
Shockproof	yes
Fog Proof	yes
Lens Coating	AR red
Mount Type	Weaver/Picatinny
Battery Type	AA
Battery Life	(high) 900 – (low) 1,000,000 / 50,000 (setting 6) hours
Battery Voltage	1.5 V
Operating Temp, F/?C	-22 to 122 / -30 to 50 F/C
Length	3.3 / 84 in/mm
Width	2.8 / 71.6 in/mm
Height	2.4 / 61.1 in/mm
Weight	10.3 oz
