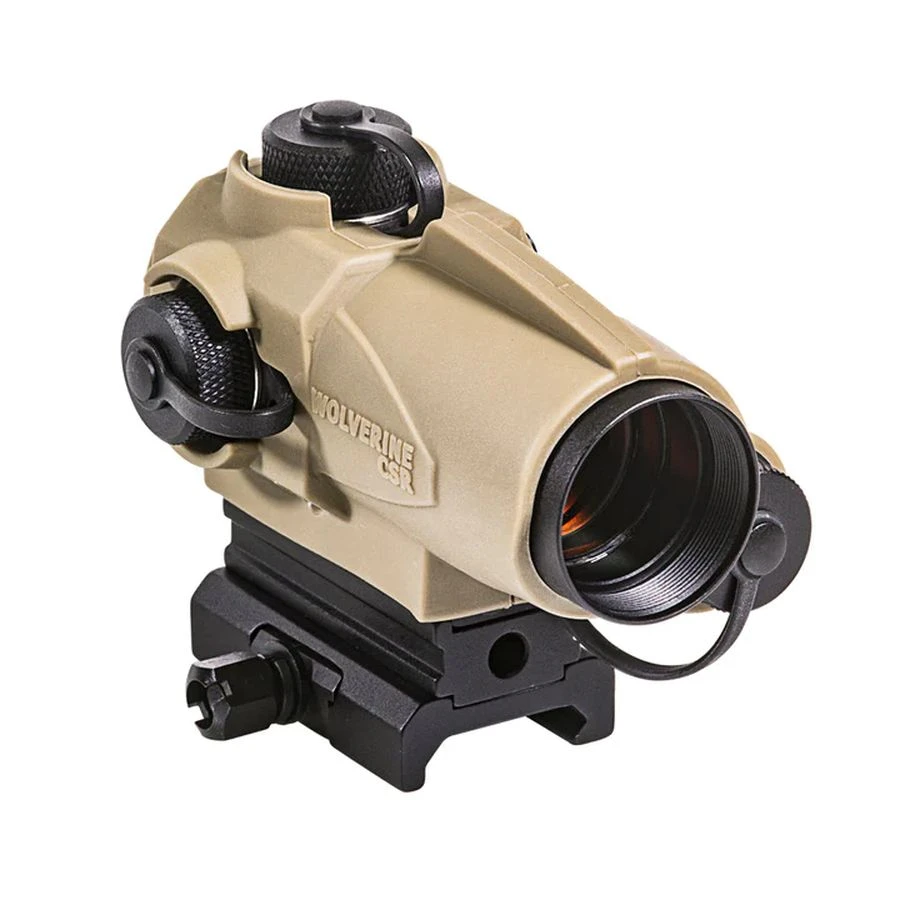

Sightmark Wolverine CSR Red Dot Sight – Flat Dark Earth

Designed specifically for shotguns and short barrelled rifles, the Sightmark Wolverine CSR FDE features a 4 MOA red dot reticle with a 23mm objective lens and adjustable digital switch brightness controls. Ready to handle the tough stuff and look good doing it, the Wolverine is housed in a rubber armoured single-piece 6061-T6 aluminium body and sports a striking flat dark earth finish.

The Wolverine CSR’s compact design weighs only 10.3 ounces and offers extremely long battery life on a single AA battery. The versatile CSR offers night vision modes, enabling it to co-witness with night vision sights. The Wolverine CSR FDE is fog proof and nitrogen purged, permitting use in harsh conditions and temperatures ranging from -22° to 122° F. All Wolverine CSR’s are IP67 waterproof and are submersible to 3 ft. Ready to adapt to any environment, the Wolverine boasts an adjustable mount height for maximum viewing comfort.

US Pat. D787627S1        US Pat. D776737S1

Features

• Flat dark earth rubber armour
• Powered by a single AA battery
• Digital switch brightness controls
• Scratch resistant, anti-reflective lens coating
• 28mm objective lens for quicker acquisition
• Protected adjustment caps
• Adjustable mount height
• Fogproof, nitrogen purged
• Night vision compatible
• Unlimited eye relief
• IP67 waterproof rating-submersible to 1m/3ft
• 6 years of continuous use

Included in Package

• Rubber lens cover
• Picatinny mount
• Riser for absolute co witness

Batteries Used

• Type: AA
• Quantity: 1

Reticle, Type	4 MOA Dot
Reticle, Colour	Red
Reticle, Illuminated	yes
Setting, Brightness	off, NV1, NV2, 3-10
Magnification	1 x
Dimension, Window	23 mm
Material, Window	glass
Eye Relief	unlimited mm
Windage Range of Adjustment	120 MOA
Elevation Range of Adjustment	120 MOA
MOA Adjustment	1 MOA
Finish/Colour	Flat Dark Earth
Body Material	Aluminium 6061-T6 / rubber
Maximum Recoil	.338 Win
IP Standard	IP67 (submersible to 1m / 3ft)
Shockproof	yes
Fog Proof	yes
Lens Coating	AR red
Mount Type	Picatinny
Battery Type	AA
Battery Life	(high) 900 – (low) 1,000,000 / 50,000 (setting 6) hours
Battery Voltage	1.5 V
Operating Temp F/C	-22 to 122 F/C
Length	3.4 / 87.5 in/mm
Width	2.8 / 71.6 in/mm
Height	2.4 / 61.1 in/mm
Weight	10.3 oz
