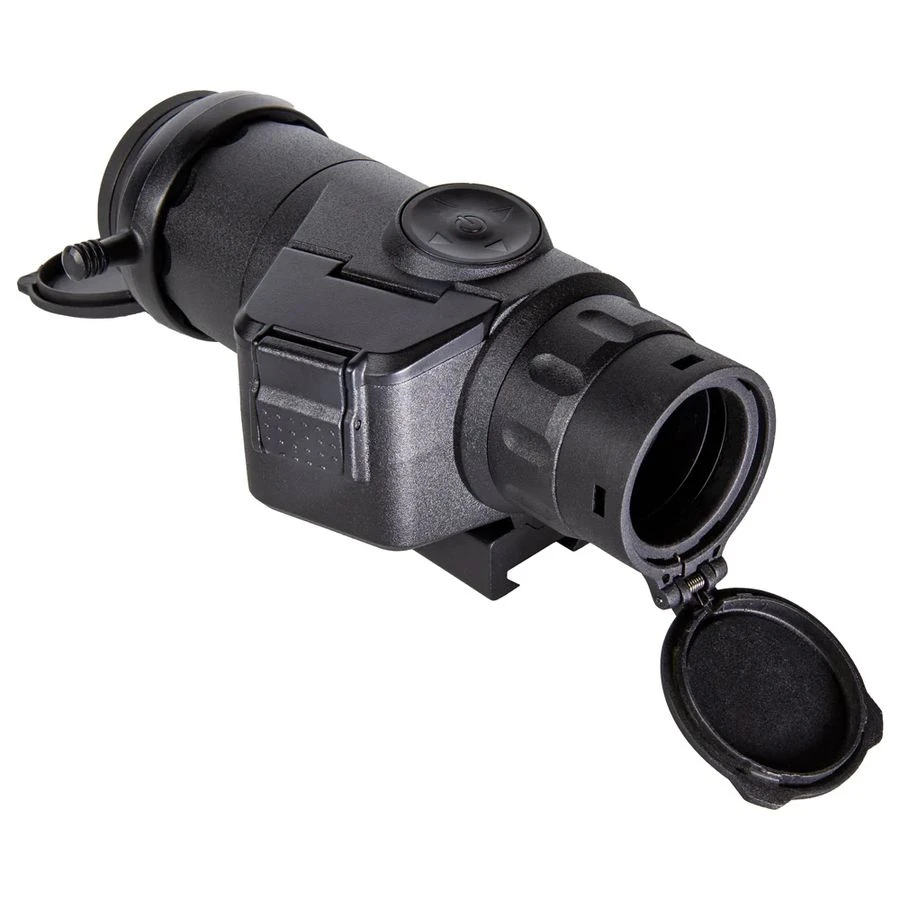

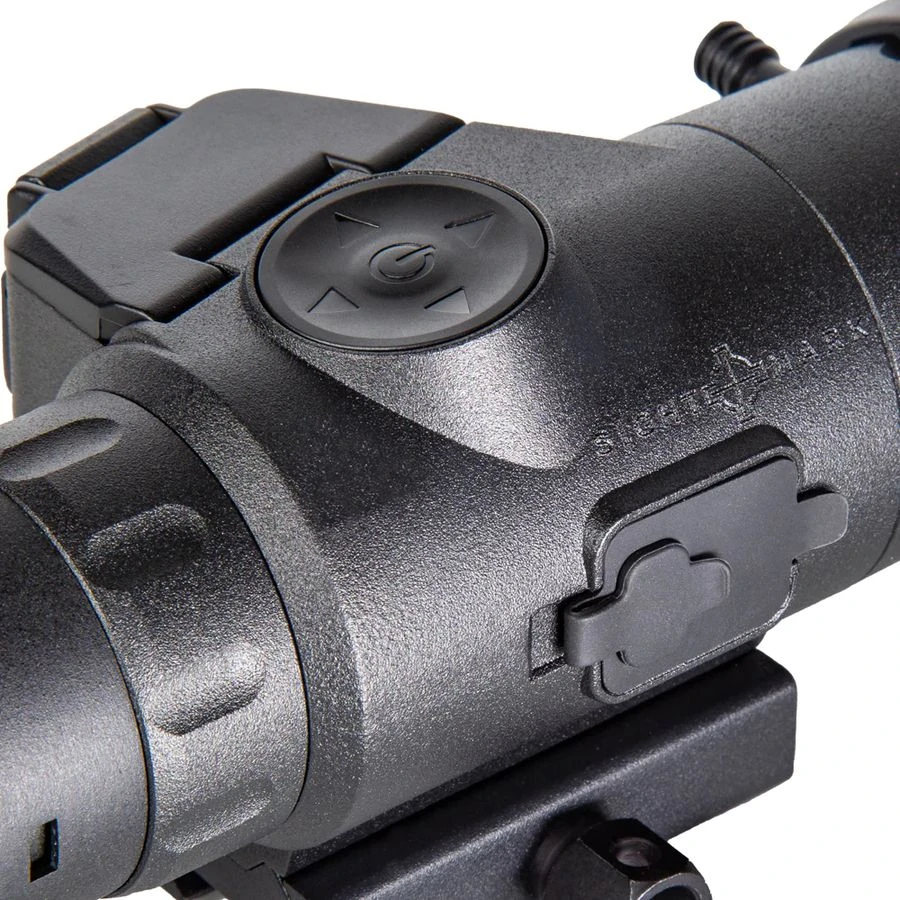

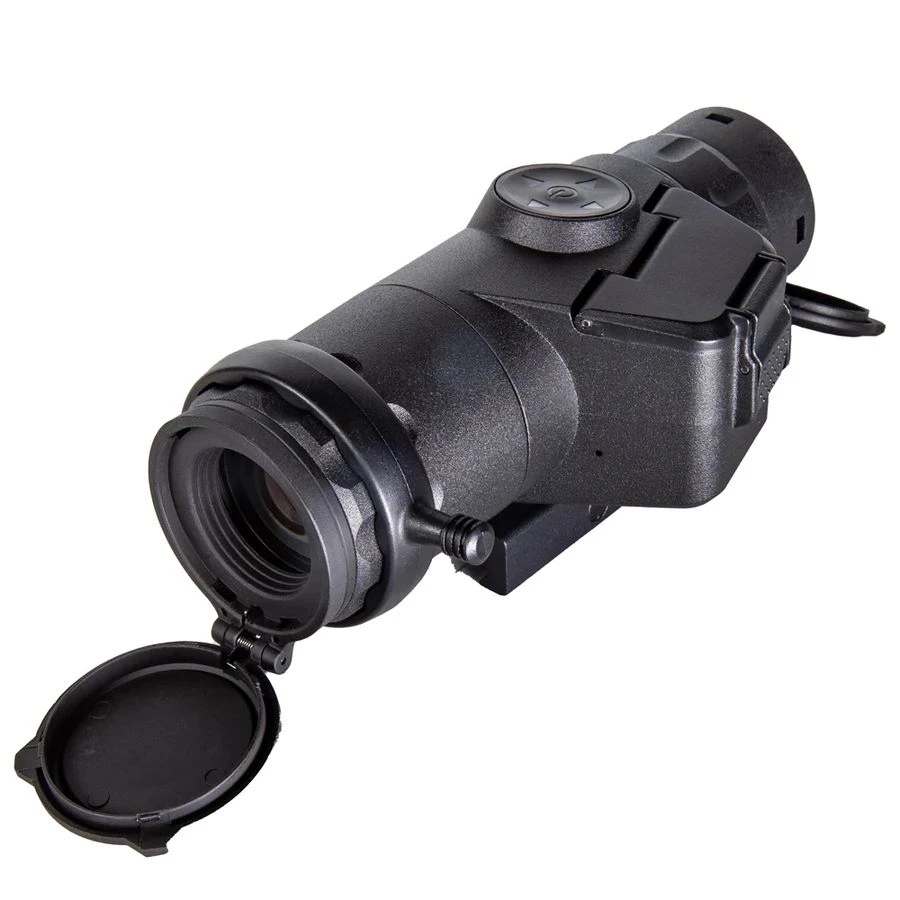

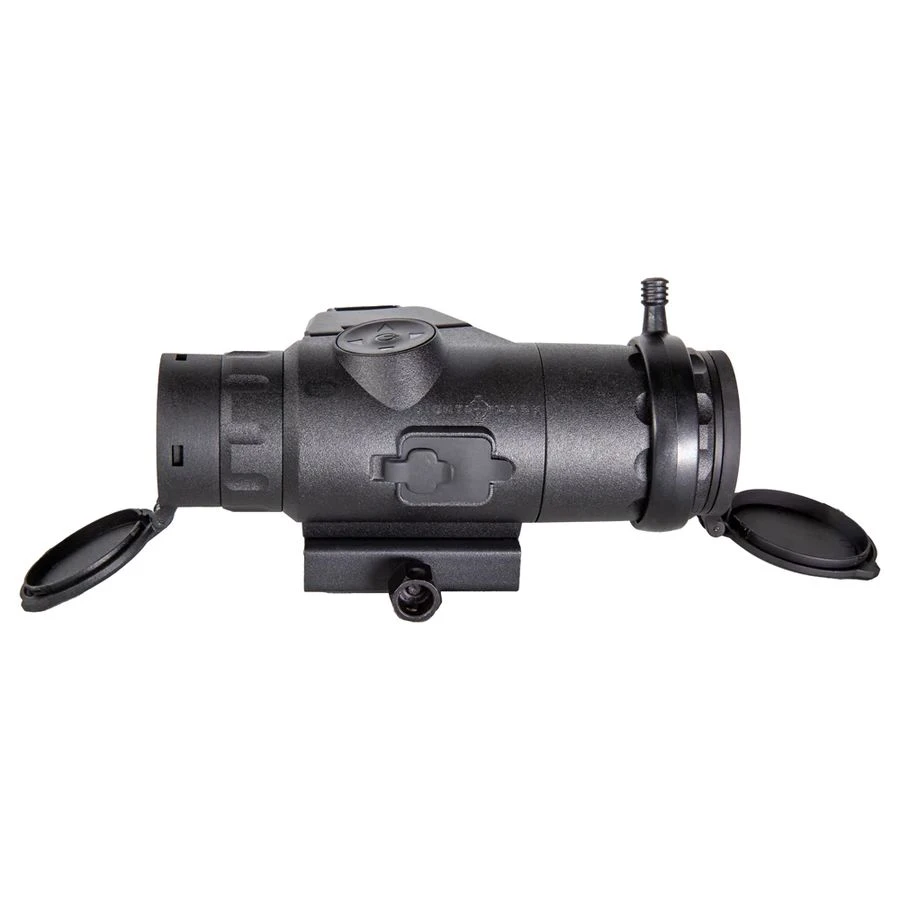

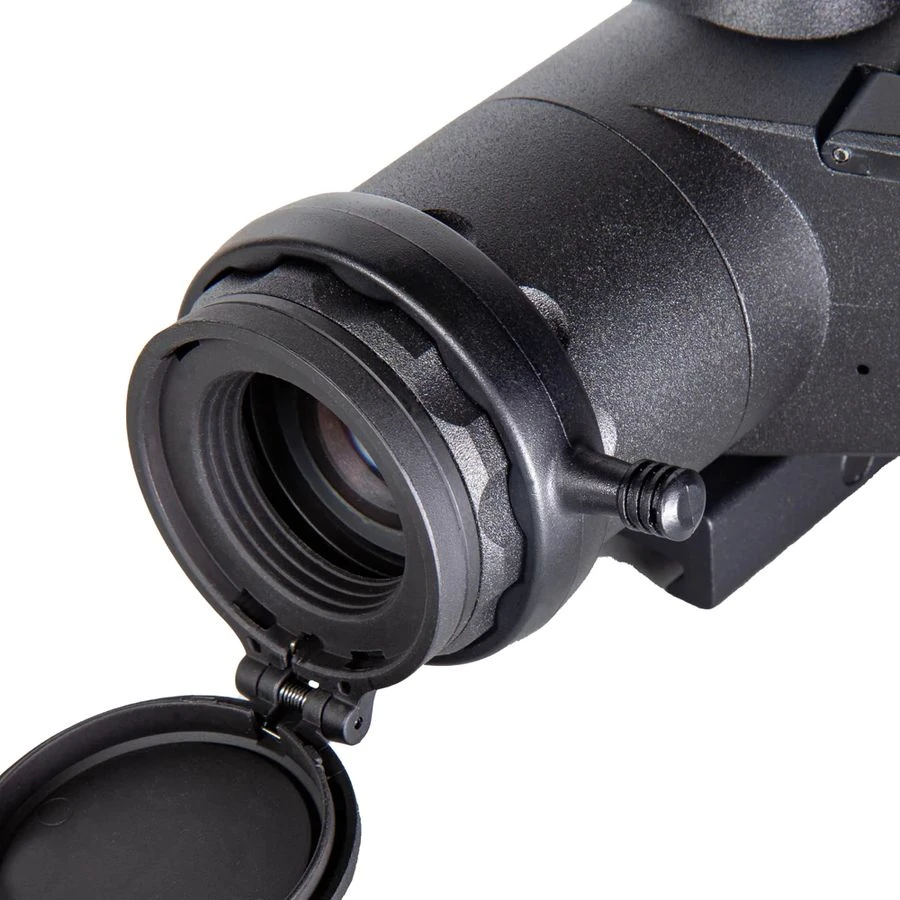

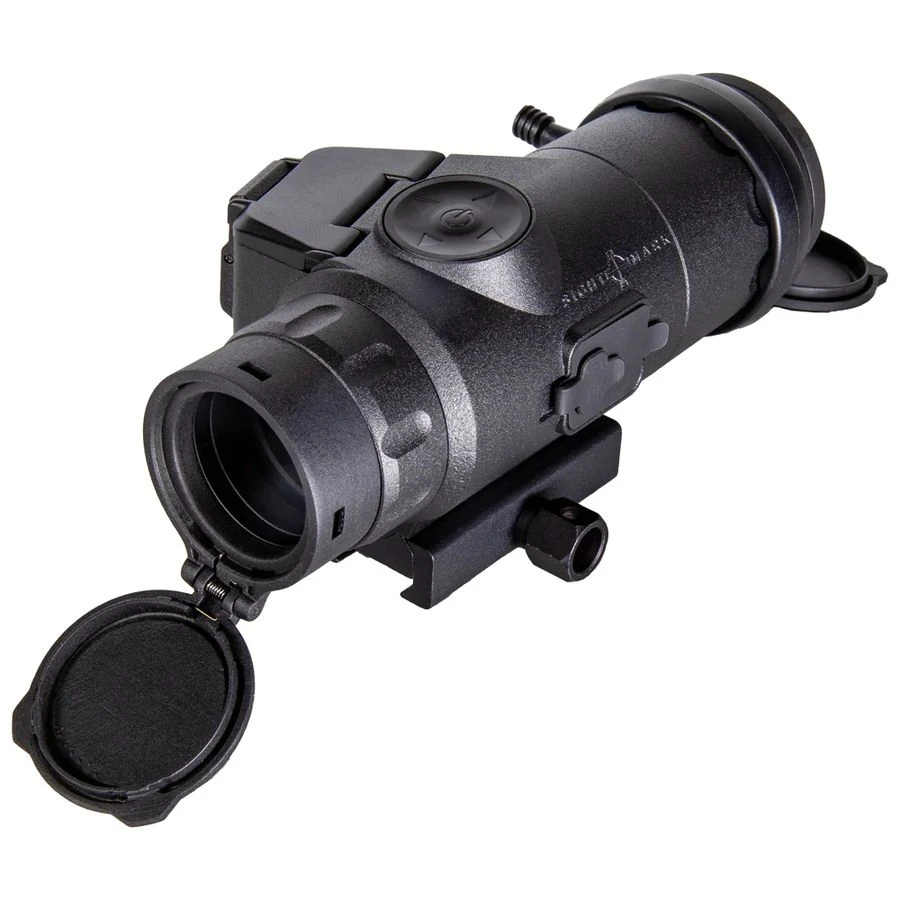

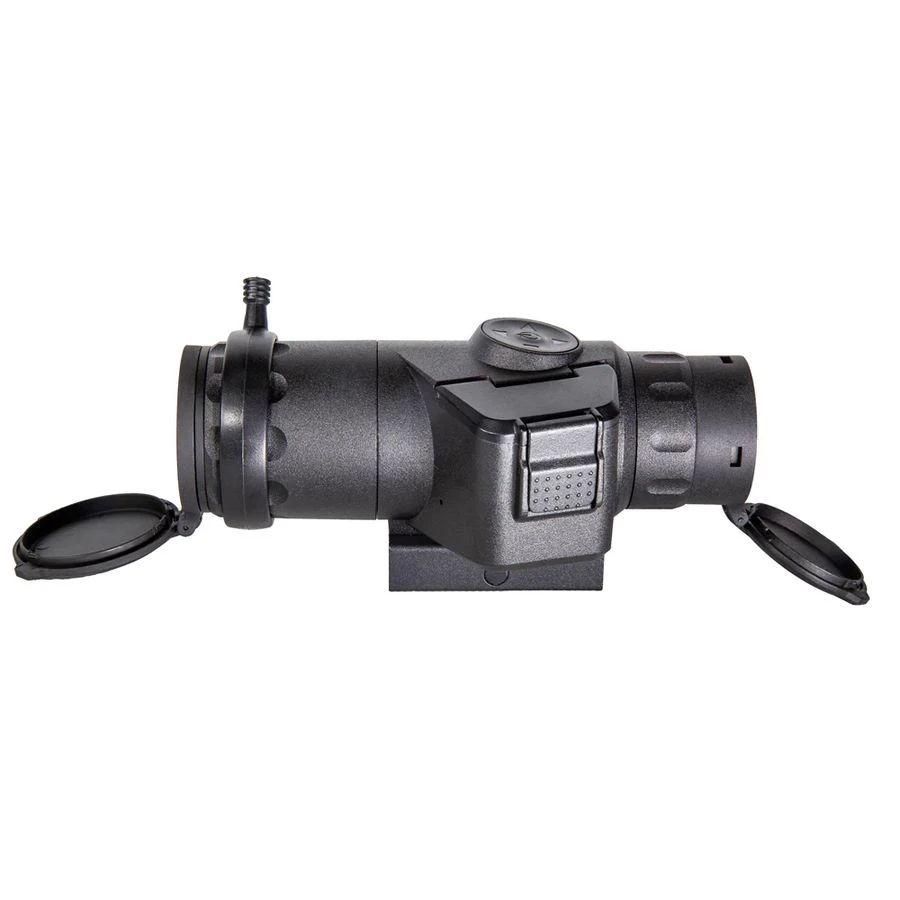

Sightmark Wraith 4K Mini 4-32×32 Digital Day/Night Vision Riflescope

The Wraith 4K Mini 4-32×32 Digital Riflescope combines Sightmark’s rugged quality with the most advanced digital optic technology available to deliver the finest day/night riflescope known to the firearms industry. Boasting an incredible 4K (3840×2160) CMOS sensor, the Wraith 4K Mini detects objects up to 274 meters (300 yards) away in the darkest of nights and displays them on a flawless 1280×720 FLCOS screen.

Although it’s extremely light and compact, the Wraith 4K Mini features big-time capabilities. The Wraith 4K Mini’s built-in recorder produces .AVI-format videos in 1080p and/or 4K resolution, ensuring every shooting memory is captured and preserved in incredible detail. With 8x digital zoom, full colour HD imaging during the daytime and two digital night vision colour palettes (green or black & white), 850nm IR illuminator and first-focal-plane reticle options, the Wraith 4K Mini enables shooters to locate and engage targets, near or far, with speed and precision.

Supremely durable, the Wraith 4K Mini is a solid aluminium scope that operates in temperatures ranging from  0 to 60C (32F to 140F), shockproof for drops up to 90 cm (3 ft.), IPX6 water resistant and capable of handling recoil up to .308 Winchester.

Features

• 4K Digital Imaging
• 4-32x magnification, 8x digital zoom
• 275 meters night detection range
• Night vision mode
• Daytime colour mode
• Built-in 4K video recording with audio capabilities
• 14 reticle options with 9 colours

Included in Package

• 850nm IR Illuminator
• Flip-up lens cover
• Focus throw lever
• Eye cup
• Fixed picatinny mount (included Long mount with SM18042EU)
• User manual

Battery Used

• Type: 2x CR123A
• Quantity: 1

Electronic components
Type of sensor	CMOS sensor
Sensor resolution, pixels	4K (3840×2160)
Display type	FLCOS
Display Resolution, pix.	1280×720
Built-In Video Recorder Availability	Yes
Maximum memory card supported, Gb	256
Format of video clip	AVI
Resolution of video clip	1080/4K
Format of photo files	JPEG
Resolution of photo files	4k
Memory capacity	Approximately 1.75 hours video with 64gb SD card  on 4k@30  quality level.
Optical characteristics
Magnification	4-32x
Lens diameter, mm	32
Digital zoom	1-8x
Lens focus, mm	50.3mm
Field of View,°, horizontal	4
Field of View, m@100m	7
Field of View, ft@100yd	21
Minimum focusing distance, ft/m	5/1.524
Eye Relief, in/mm	2.4 / 60
Diopter adjustment, dptr.	-6 to +3
IR-illuminator
Emitter	LED
IR Wavelength, nm	850nm
Equivalent IR Power, mW	~1060 on high, ~540 on medium, ~400 on low
Battery Life	2 hours on high
Battery type	2x CR123A
Range of Detection
Night Vision detection range, yd/m	300/274
Power Supply
Power Supply, v	6
Battery type	2x CR123A
Battery life	3.6Hrs Video Mode/ 4.4Hrs Preview Mode
External Power Supply	5V via micro USB
Reticle
Windage & Elevation click value	1 pixel/ ~X0.4MOA
Adjustment range, elevation	~ 150 MOA
Adjustment range, windage	~ 350 MOA
Number of reticle options	10 SFP 4FFP
Colours	Black, white, red, blue, green, cyan, orange, yellow, magenta
Physical & operational characteristics
Body Material	Aluminium
Accessory rail mount	Picatinny
Operating Temp,°F / C°	32 to 140 / 0 to 60
Waterproof rating	IPX6 – water resistant
Nitrogen Purged, yes/no	no
Shockproof, yes/no	yes, 3ft
Maximum recoil, calibre	.308
Tube diameter	n/a
Length, in/mm	6.299 / 160
Width, in/mm	3.031 / 77
Height, in/mm	2.913 / 74
Weight (with batteries), oz	21.6 / 612
